Anritsu MS2690A, Signal Analyzer, 50Hz-6GHz

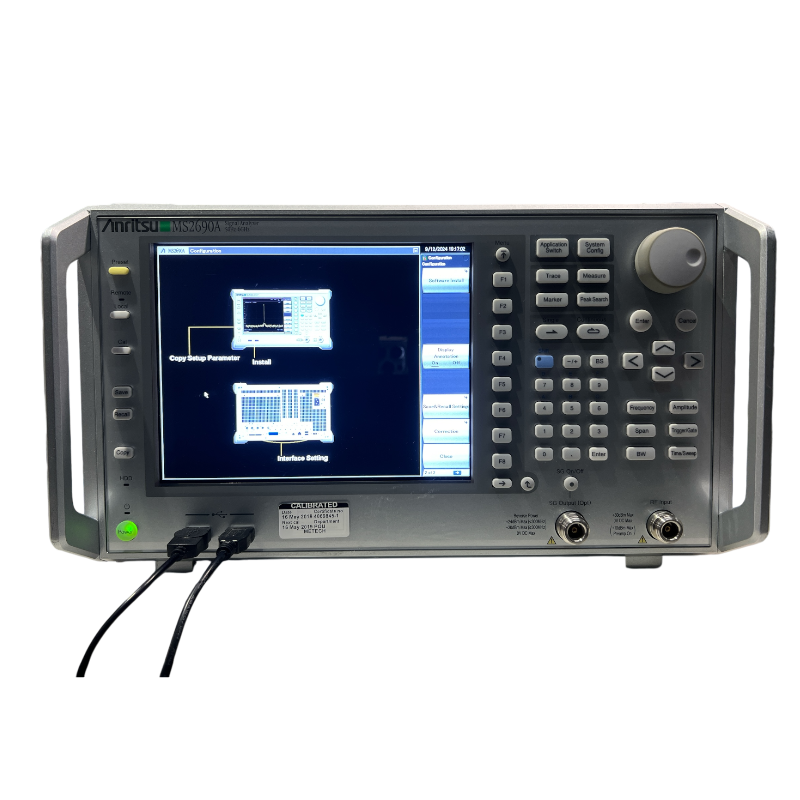

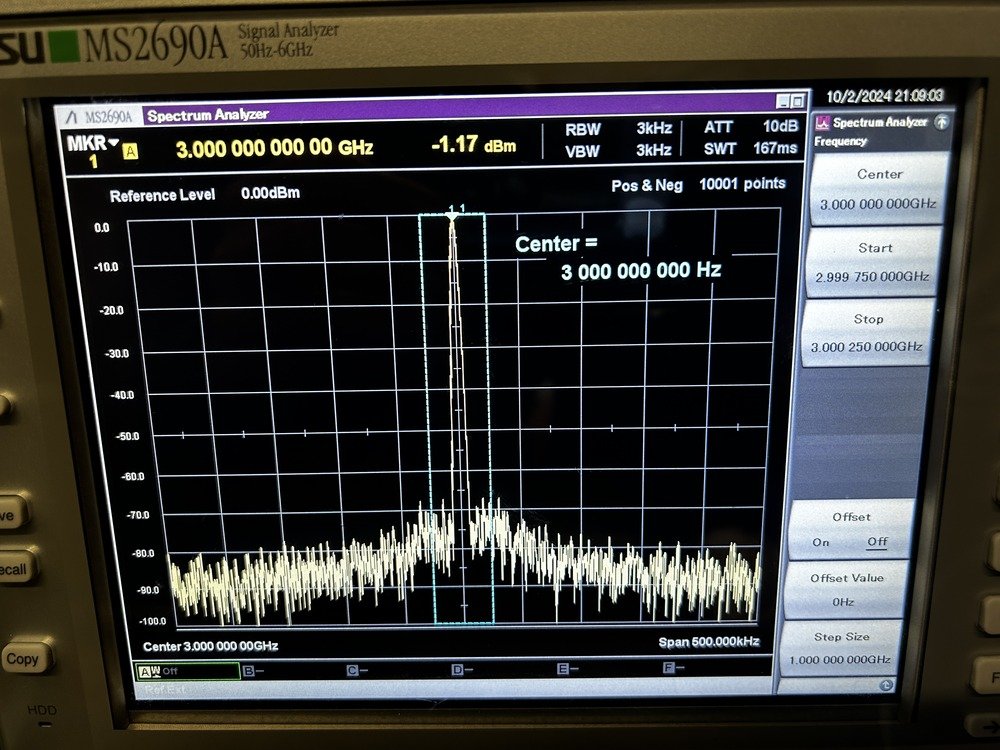

Unit is tested and in good working and cosmetic condition, please see pictures!
Condition: Tested good
Serial number: 6201032584
Generic description (Took from manufacturer’s webpage)

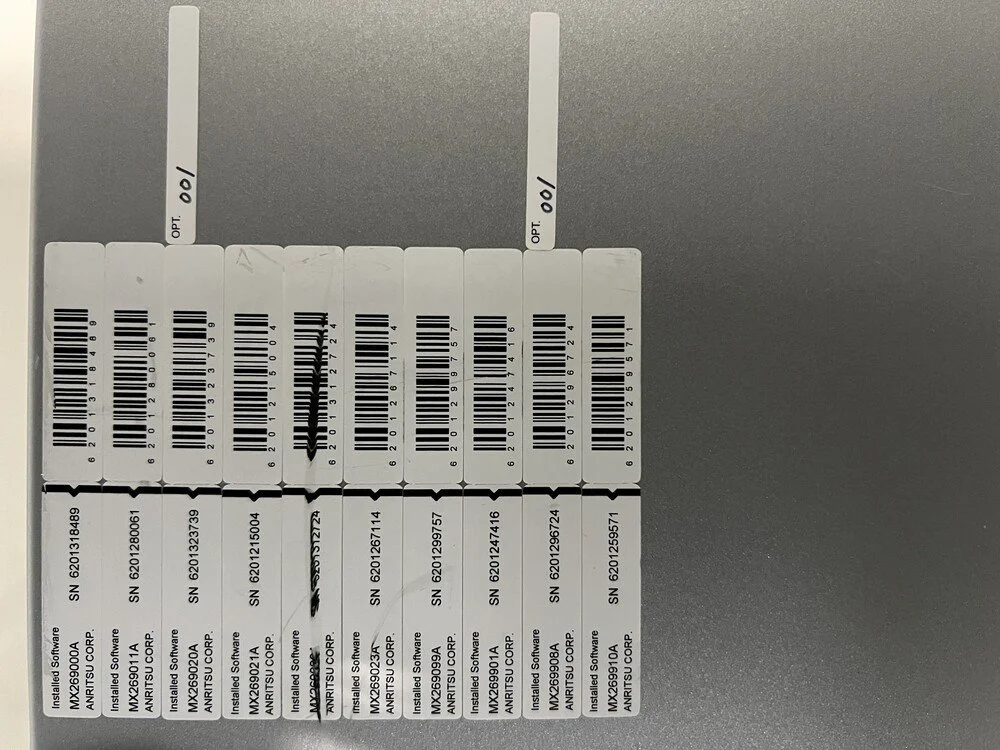

Note. Description only dependent on installed options. Please see unit pictures for options!
Signal Analysis will never be the same again
MS269xA Series Signal Analyzers are the latest high performance signal analyzers for next-generation communication applications. The MS269xA Series Signal Analyzer base units include swept spectrum analysis, FFT signal analysis, and a precision digitizer function. Add options to incorporate a Signal Generator, to turn the instrument into a hassle free, plug and play, one box solution.
The MS269xA Series Signal Analyzers support a standard analysis bandwidth of 31.25 MHz that can be extended to 62.5 MHz /125 MHz with optional hardware. Using a patented calibration process, the multipoint amplitude calibration and the phase calibration result in a level accuracy of ±0.5 dB across a 6 GHz span. No other analyzer on the market can meet that specification! These boxes are superlative in every way -- they measure the widest signals and using the latest technology, make measurements faster than ever before. The modular architecture ensures a box that grows as measurement requirements change.
A series of options enables standards-based modulation analysis, vector signal generation, and BER measurement. The end-user can configure a one-box solution that dramatically reduces cost, footprint, and Total Average Cycle Time (TACT) for device evaluation.
The MS269xA Series Signal Analyzers are accurate enough for the most demanding R&D environment, yet are fast enough for the factory floor! Currently supported applications include GSM, GPRS, EDGE, W-CDMA, and LTE.
The wideband FFT signal analyzer (analysis bandwidth of 31.25 MHz with option for 62.5 MHz /125 MHz) supports high-speed continuous measurements including CCDF, frequency vs. time, spectrum, and power vs. time analysis. The standard digitizing function can capture waveforms and immediately play them out using the optional Signal Generator. An extended digitizer option adds the ability to capture signals up to 20 MHz wide for up to 4 hours.
Applications
BTS and UE transmitter testing
Receiver testing with the Signal Generator option
High-performance for R&D
High-speed for manufacturing
General Purpose analysis for modulation R&D
5G NR (sub-6 GHz)
LTE/LTE-Advanced (FDD/TDD), EDGE Evolution, and HSPA Evolution
WLAN testing including IEEE802.11a/b/g/j/n/p/ac
Power amplifier testing
Satellite Communications
Physical layer Testing for all 3GPP technologies
Features
Frequency range: 50 Hz to 6 GHz
Analysis bandwidth
31.25 MHz (standard)
62.5 MHz/125 MHz (option)
Supports 5G NR (sub-6 GHz) TDD/FDD
Wide measurement dynamic range EVM performance: <0.5%
One-button dynamic-range optimization at EVM measurementOffers modulation analysis, such as LTE/LTE-Advanced (FDD/TDD), WLAN IEEE 802.11ac etc. (with optional software)
One-Box Tester with the addition of the Signal Generator option
Batch capture measurements for the fastest analysis time
Supports Noise Figure measurement (option)
Technologies
Bluetooth Wireless Technology
WLAN
LTE
W-CDMA/HSPA/HSPA Evolution
TD-SCDMA
Base Station Testing
Connecting the IoT World Testing with Anritsu
