Flir ThermaCAM SC3000 PAL High Speed Thermal Imaging System

Unit is tested and in good both working and cosmetic condition. Please see pictures!

Condition: Tested good

Serial number: 12860010

Set includes:

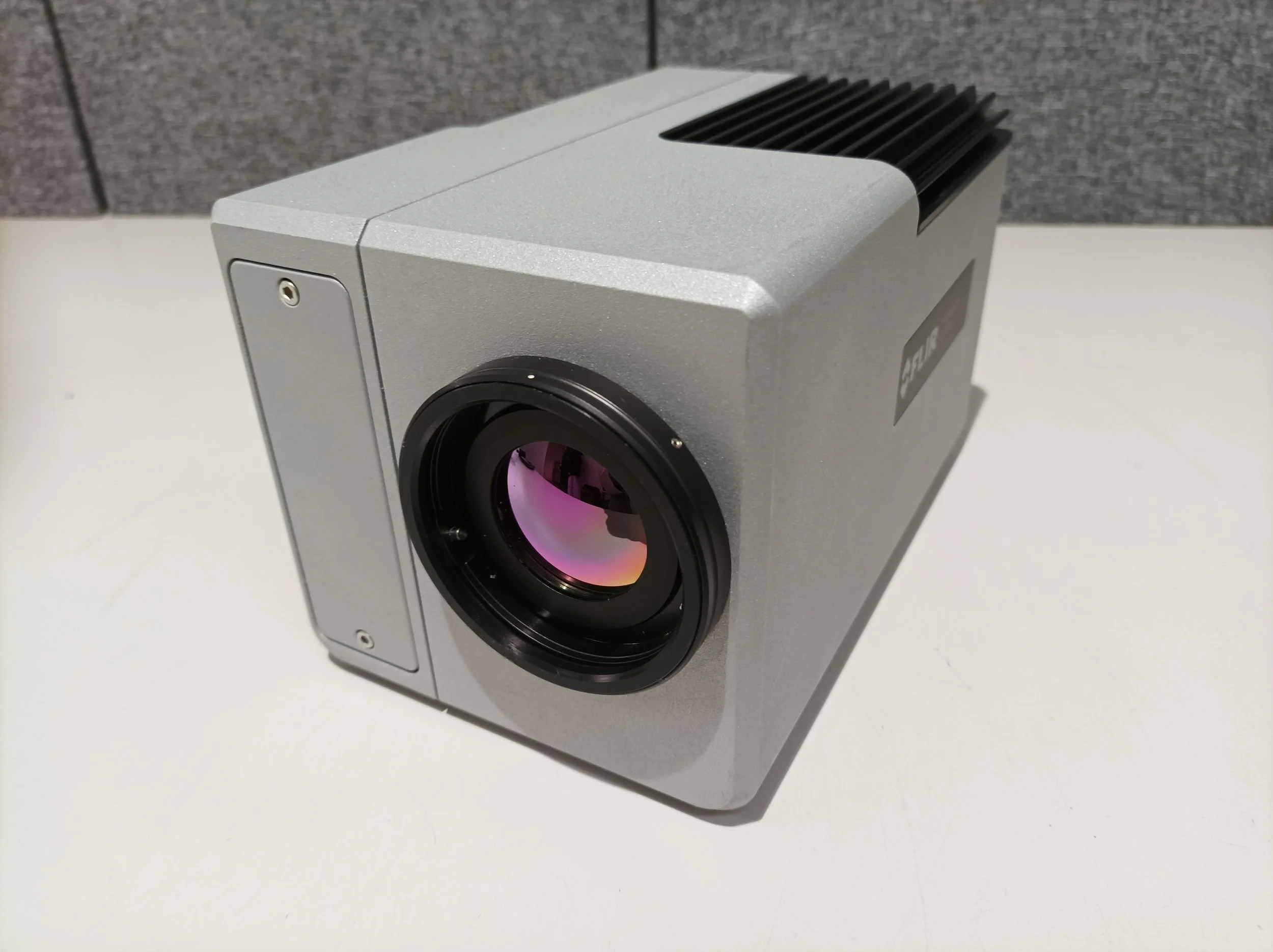

• FLIR ThermaCAM SC 3000 Infrared Thermal Imaging Camera (BC# -L/T*)

• Microscope lens 10/26 and microscope lens 34/100

• Flir Agema 500/900 Parallel Interface

• RS232 Interface Cable

• RS422 Interface Cable

• USB PC Interface Cable

• AC Adapter/Charger

• User Manual (PDF)

• Carrying Case

Generic description (retrieved 11/23 from manufacturer’s specifications)

Note. Description only dependent on installed options. Please see unit pictures for options!

Unparalleled Thermal Precision

FLIR’s proprietary Quantum Well Infrared Photodetector (QWIP) Focal Plane Array (FPA) Sensor technology powers the most advanced IR detector available, providing outstanding image resolution and unparalleled temperature measurement precision.

Advanced Technology

Ultra-high thermal sensitivity, extremely wide dynamic range, revolutionary long wave imaging performance and high-speed data acquisition capabilities make the SC3000 the most advanced solution for IR temperature measurement and thermal analysis in non-destructive evaluation, research and development, and product design.

Exceptional Image Quality

QWIP technology is the most advanced long wave focal plane array functionality available, delivering advances in thermal sensitivity unrivaled by any other commercial IR camera. The SC3000 gives users exceptional image stability and uniformity – ideal for applications where precise temperature measurements and high thermal sensitivity are paramount.

High-speed Data Capture & Analysis

Crisp high-resolution 14-bit images and thermal data are captured and stored at extremely high rates (up to 900Hz) on high capacity PC cards. Coupled with the ThermaCAM Researcher software package, the SC3000 enables quick, in-depth, extensive analysis of both static and real-time images. Plus, broad dynamic range functionality allows for analysis of individual frames that cover extremely wide temperature ranges, detecting minute thermal differences.

A Multitude of Options

Multiple temperature ranges offer optimal measurement options for diverse applications, target size, distance and speed. A wide range of optics allows users to adapt the SC3000 to a variety of situations, and measure extremely small or distant targets without sacrificing image quality, resolution or sensitivity.

Specifications:

Imaging Performance

Field of view/min focus distance 20˚  x 15˚  / 0.3m

Spatial resolution (IFOV) 1.1 mrad

Thermal sensitivity 20 mK at 30˚ C

Image frequency 50/60 Hz non-interlaced (standard), up to 750/900Hz (with Researcher HS option)

Electronic zoom function 4X continuous

Detector Type, Quantum Well Infrared Photodetector (QWIP), 320x240 pixels

Spectral range 8 to 9µm

Detector Cooling Stirling cooled to 70K, cool down time <6 minutes

Measurement Temperature range -20˚C to +1500˚C (-4 ˚ F to 2732˚ F),

4 ranges Up to +2000˚ C (+3632˚ F), optional

Accuracy:

±1% or ±1˚C (for measurement ranges up to +150˚C)

±2% or ±2˚C (for measurement ranges above +150˚C)

Atmospheric transmission correction

Automatic, based on inputs for distance, atmospheric temperature and relative humidity

Optics transmission correction

Automatic, based on signals from 5 internal sensors

Automatic emissivity correction Variable from 0.1 to 1.0 or select from listings in pre-defined materials list

Image Presentation

Video output

RS170 EIA/NTSC or CCIR/PAL composite, S-video, and 14-bit digital serial link

Image Storage Type:

High capacity PC-Card, ATA compatible (160MB min)

File formats:

14-bit radiometric IR digital image (IMG),includes header file with all radiometric data 8-bit standard bitmap (BMP),

image only or image with screen graphics Every image stored in both formats

Environmental Specifications:

Operating temperature range

-15˚C to +50˚C (5˚F to 122˚F)

Storage temperature range

-40˚C to +70˚C (-40˚F to 158˚F)

Humidity

Operating and storage: 10% to 95%, non-condensing

Encapsulation IP 54 IEC 529 (metal casing)

Shock Operational: 25G, IEC 68-2-29

Vibration Operational: 2G, IEC 68-2-6
