ROHDE & SCHWARZ CTD-Z 10, SHIELDED MOBILE ANTENNA COUPLING DEVICE

Item is in good both working and cosmetic condition. Please see pictures!

Generic description (Took from manufacturer’s webpage)

Features only dependent on installed options. Please see unit pictures for options!

Universal Shielded Chamber CTD-Z10 for Mobile Phone Testing

Interference-free testing for all cellular networks. Simple coupling in 900-MHz band

Anyone engaged in mobile phone testing is only too familiar with problems such as getting hold of a suitable RF adapter or keeping RFI away which would otherwise falsify the measurement results.

CTD-Z10, consisting of a coupler and a shielded chamber, is the solution to these problems. As an alternative to coupling via various manufacturer-specific adapters, the RF connection between mobile phone and test set can be made in the 900-MHz band via a single universal antenna coupler. Moreover, the shielded chamber ensures constant and defined test conditions which without protective measures against external radio fields – eg caused by neighbouring base stations – are usually not given.

With its excellent shielding characteristics both in the 900-MHz band and in all other frequency bands of cellular mobile radio, CTD-Z10 is the ideal accessory not only for the Go/NoGo Tester CTD52, but for all digital and analog radio testers from Rohde&Schwarz.

he shielded chamber of CTD-Z10 provides sufficient space for accommodating all customary analog and digital mobile phones. The antenna of the phone to be tested is connected to the coupler via a spring clamp. To achieve reproducible results, the coupler can be fixed to the chamber base. The radiospecific attenuation factors can be determined through calibration. As an alternative to the antenna coupler supplied, the mobile phones may also be connected via manufacturer-specific couplers or cables with connectors

Specifications

CTD-Z10 1084.0003.02

Shielded chamber

• Shielding effectiveness in all bands of cellular mobile radio: >50 dB

• Material: aluminium, interior lined with foam mats

• RF connector: N female (connecting cable supplied)

• Dimensions (W x H x D) 480 mm x 325 mm x 145 mm

• Weight 3.4 kg

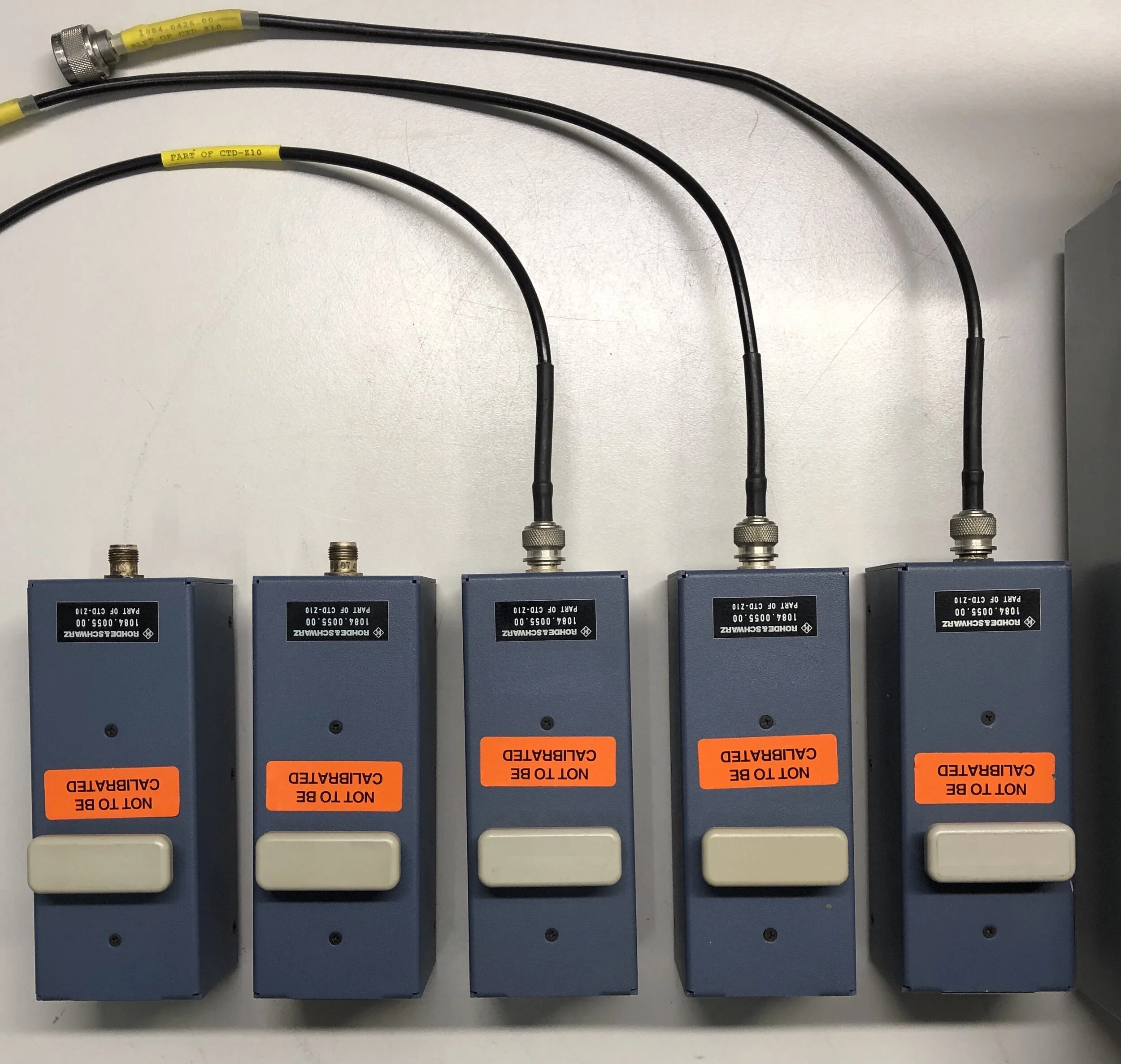

Antenna coupler

• Frequency range: 900-MHz band

• Coupling: typ. 6 dB

• Mech. connection phone – coupler: antenna clamp

• Dimensions: (W x H x D) 170 mm x 80 mm x 60 mm
