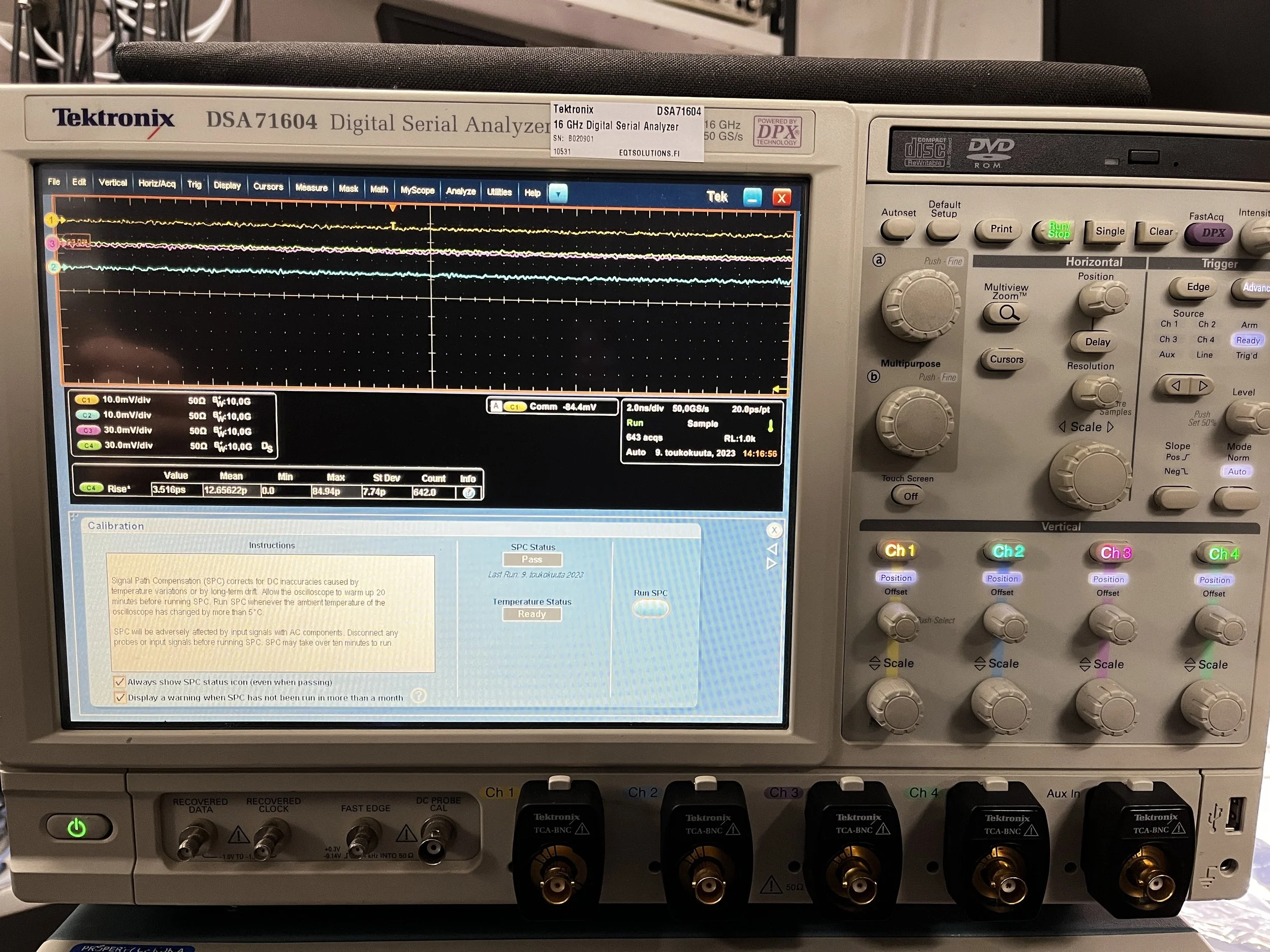

Tektronix DSA71604, Digital Serial Analyzer, 16GHz, 50GS/s

Unit is tested and in good working and cosmetic condition. Please see pictures!

Condition: Tested good
Calibrated: 22.10.2018 by Element Metech (Certificate Nr. 4076360-1)
Serial number: B020901
Options:

2XL - 20 Meg Max 20M/CH
MTH - Serial Mask Testing
PTH1 - 3.125Gb/s Serial Pattern Trigger
ASM - Advanced Search & Mark
DDRA - DDR Analysis
DJA - Jitter and Eye Diagram Tools - Advanced
ST - Description N/A
RTE - Description N/A
JA3 - Description N/A
PTD - Description N/A

Need calibration for the unit? Please contact us and we'll send you a affordable calibration quote!

General description (From manufacturer’s webpage)

Note: Unit specific features depend on installed options. Please see unit pictures for options!

DSA70000 Series

For Developing with Today’s High-Speed Serial Standards, the DSA70000 Digital Serial Analyzer is Your Uncompromised High-Performance, Dedicated Solution to Efficiently Address Your Design Challenges

The DSA70000 Series is a new generation of real-time digital serial analyzers based on the same advanced technology as the DPO70000 real-time digital phosphor oscilloscopes. As high-speed serial technology becomes more pervasive, more designers are looking for easy to use, complete, and dedicated solutions for verifying, characterizing, debugging, and testing sophisticated high-speed serial designs. The DSA70000 Series is specifically targeted to address the challenging high-speed serial design issues faced by designers, by encapsulating extended high-speed serial data domain expertise. It inherits exceptional signal acquisition performance, operational simplicity, and unmatched debugging tools from the DPO70000 Series, to accelerate your day-to-day tasks. It also features the extended analysis tools that enable high-speed serial signal analysis and compliance measurements in a specialized instrument.

The DSA70000 Series Analyzers provides the signal fidelity of Tektronix oscilloscopes to ensure confidence in your measurement results: high sample rate on all models, on all channels, to capture more signal details (transients, imperfections, fast edges), 25 GS/s on all four channels for the 4, 6, and 8 GHz models, 50 GS/s on all four channels for the 12.5, 16, and 20 GHz models, bandwidth enhancement as well as best low jitter noise floor and vertical accuracy for very accurate measurements.

The DSA70000 Series provides the longest acquisition of the industry to provide more resolution and longer time sequence—a standard 20 M on the DSA Series, or an optional up to 100 M samples on all four channels for the 4, 6, and 8 GHz models, 200 M samples on all four channels for the 12.5, 16, and 20 GHz models. Easily manage this deep record length and provide detailed comparison and analysis of multiple waveform segments with the MultiView Zoom™ feature.

The DSA70000 analyzers share the DPX technology of the DPO70000 and can deliver high waveform capture rate at more than 300,000 waveforms per second. The DSA70000 Series capture these intermittent fault events that can break a design with the FastAcq acquisition mode. With Pinpoint® triggering, the DSA70000 series is also equipped to isolate a section of a complex signal for further analysis.

To debug serial architectures, the DSA70000 Series features the NRZ serial pattern triggering and protocol decode with built-in clock recovery. It recovers the clock signal, identifies the transitions, and decodes characters and other protocol data. You can see the captured bit sequences decoded into their words for convenient analysis (for 8b/10b and other encoded serial data streams), or you can set the desired encoded words for the serial pattern trigger to capture. Lastly, you can synchronize long serial test pattern acquisitions up to 6.25 Gbps to remove random jitter. The DSA70000 Series covers serial standards up to 3.125 Gbps.

The DSA70000 Series features the highest accuracy jitter and timing measurements as well as comprehensive analysis algorithms. Tight timing margins demand stable, low-jitter designs. You can make jitter measurements over contiguous clock cycles from every valid pulse in a single-shot acquisition. Multiple measurements and trend plots quickly show system timing under variable conditions. It also includes Random Jitter and Deterministic Jitter separation as well as Total Jitter measurement at Bit Error Ratio to 10-18

Communications Mask Testing provides a complete portfolio of masks for verifying compliance to serial communications standards. It supports 156 Standards Masks – ITU-T (1.544 Mbps to 155 Mbps)/ANSI T1.102 (1.544 Mbps to 155 Mbps); Ethernet IEEE 802.3; ANSI X3.263 (1.544 Mbps to 3.125 Gbps XAUI); Sonet/SDH (51.84 Mbps to 2.4883 Gbps); Fiber Channel (133 Mbps to 4.25 Gbps*1). InfiniBand (2.5 Gbps); USB (12 Mbps to 480 Mbps); Serial ATA (1.5 Gbps, 3 Gbps); Serial Attached SCSI (1.5 Gbps, 3.0 Gbps); IEEE 1394b (491.5 Mbps to 1.966 Gbps); Rapid I/O (1.25 Gbps to 3.125 Gbps); OIF Standards (2.488 Gbps to 3.11 Gbps); PCI Express (2.5 Gbps).

Accurate, Simple, and Customizable Physical Layer Testing on High-Speed Serial Standards. When designing to industry standards, analog validation and compliance testing (Front Side Bus, PCI Express, FB-DIMM, Serial ATA, Serial Attached SCSI, Fiber Channel, XAUI, IEEE1394b, RapidIO) is critical to ensure device interoperability. Patented Real-Time (RT-Eye®) clock recovery and Eye Rendering provides standard specific clock recovery, high-precision eye diagrams for transition and nontransition bits and accurate jitter measurements, and de-emphasis measurements. Standard-specific compliance and analysis modules that configure the pass/fail waveform mask and measurement limit testing are also available as an option for PCI Express (Option PCE), for Serial ATA and SAS (Option SST), for FB-DIMM (Fully Buffered - Dual Inline Memory Module) (Option FBD), or InfiniBand (Option IBA)

*1 A 4.25 Gbps mask supported using Glitch Trigger. It is standard on the DSA70000 Series, and optional as Opt. MTH on DPO70404, DPO70604, and DPO70804.

Features & Benefits

• On All Four Channels Simultaneously

• 20, 16, 12.5, 8, 6, and 4 GHz Bandwidth Models

• Up to 50 GS/s Real-Time Sample Rate

• Up to 200 Megasamples Record Length with MultiView Zoom™ Feature for Quick Navigation

• Fastest Waveform Capture Rate with >300,000 wfms/s Maximum per Channel

• Digital Serial Analyzer Models with Dedicated Configuration for High-Speed Serial Design and Compliance Testing

• Enhanced Bandwidth to the Probe Tip Extended to Support Multiple Bandwidth Steps for Advanced Signal Integrity.

• Pinpoint® Triggering, with over 1400 Combinations to Address Virtually Any Triggering Situation

• Unique Serial Pattern Triggering up to 3.125 Gbps and 8b/10b Standard Protocol Triggering for Isolation of Pattern-Dependent Effects and NRZ Serial Test Pattern Triggering up to 6.25 Gbps

• Serial Data Analysis and Compliance for PCI Express, Serial ATA, FB-DIMM, SAS, Fiber Channel, IEEE1394b, RapidIO, XAUI, HDMI, DVI, Ethernet, USB 2.0

• High-Speed Serial Data Link Analysis for Transmitter Channel Embed or De-embed and Receiver Equalization Emulation

• Most Popular Jitter, Timing, and Eye-Diagram Analysis Package

• DDR Memory Bus Analysis

• 12.1-in. Largest XGA Touch-Screen Display in the Industry

• Event Search and Mark to Facilitate the Comprehension of Event Relationships

• MyScope® Custom Windows and Right Mouse Click Menus for Exceptional Efficiency

• OpenChoice® Software with Microsoft Windows XP OS Enables Built-In Networking and Extended Analysis

Applications

• Signal Integrity, Jitter, and Timing Analysis

• Verification, Debug, and Characterization of Sophisticated Designs

• Debugging and Compliance Testing of Serial Data Streams for Telecom and Datacom Industry Standards

• Investigation of Transient Phenomena

• Spectral Analysis

Please contact us for the unit's datasheet!
