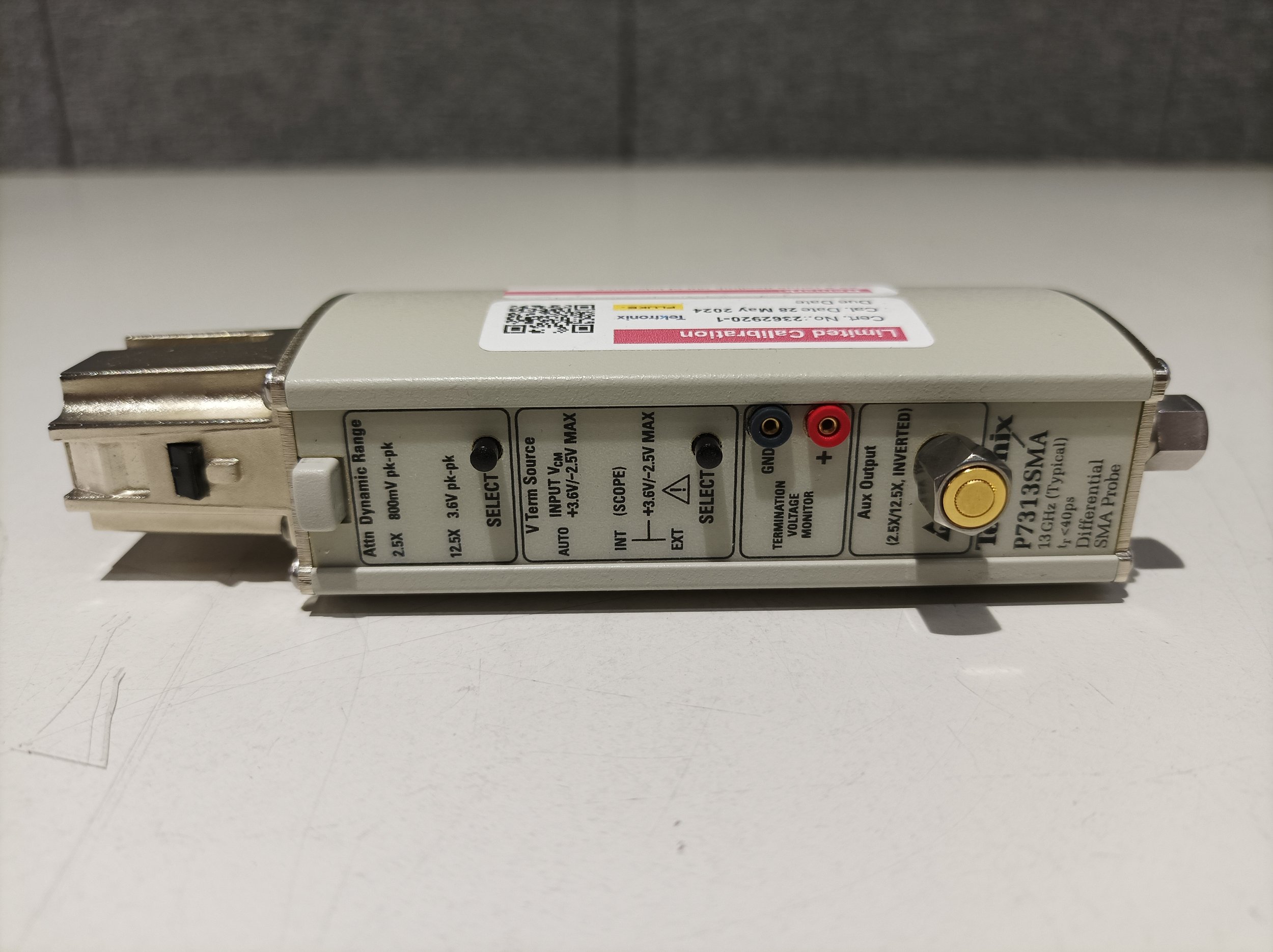

Tektronix P7313SMA, 13GHz Differential SMA Probe

Unit is calibrated and in good working and cosmetic condition. Please see pictures!

Condition: Limited calibration. Please see picture.
Serial number: B020322
Calibrated: 28.5.2024 by Tektronix (Certificate Nr. 2362920-1)

General description (Retrieved 10/24, Tektronix)
Note: Unit specific features depend on installed options. Please see unit pictures for options!

The P7313SMA probe provides a high fidelity, low noise, differential input connection for Tektronix real-time oscilloscopes. This probe also includes features that enable proper termination for high-speed serial buses

Features & benefits

• >13.0 GHz bandwidth, 16 GHz with DSP filtering

• 50 Ω termination network, differential SMA inputs

• Industry-leading differential return loss and VSWR

• High-bandwidth differential amplifier with excellent CMRR

• Internal termination voltage generator can be controlled by the oscilloscope, by an external source, or automatically by the probe

• Phase-matched SMA cables (38 inch length, <1 ps skew) with cable loss compensation

• Switchable gain for extended dynamic range

• Auxiliary (inverted) output for use with spectrum analyzers, network analyzers, or as a clock recovery trigger source

• TekConnect™ Interface

Applications

• PCI Express

• Serial ATA

• USB

• MIPI M-PHY

• HDMI

• DisplayPort

Tektronix Differential SMA probes

Tektronix differential SMA probes are designed for measuring differential signals in a 50 Ω signaling environment, providing the ability to convert from a differential SMA signal path to a single oscilloscope input channel. Many of today's high-speed serial data standards employ differential signaling on multiple lanes that are challenging to measure simultaneously on a single oscilloscope. The Tektronix Differential P7300 SMA Probes provide the ability to measure a high-speed differential signal on each channel of a multiple-channel oscilloscope. The right oscilloscope can simultaneously acquire up to four high-speed differential signals with the use of four differential SMA probes. As an added benefit, the SMA inputs on the probes connect to high-quality 50 Ω terminations that offer industry-leading return loss, a critical specification that is very important in compliance testing as frequencies increase.

Tektronix Differential P7300 SMA Probes also provide a common mode DC voltage input to the termination network. The termination voltage can be supplied either externally by the user or internally by the oscilloscope. In addition, there is also an automatic mode that senses the common mode voltage of the input signal and automatically sets the termination voltage to match. The P7313SMA has an extended termination voltage range that makes it ideal for testing differential standards with high common mode voltages such as HDMI.

Taken together, the high-speed differential amplifier, superior 50 Ω terminations, low return loss, flexible termination voltage, and quality phase-matched SMA cables create a world-class differential acquisition system when used with Tektronix oscilloscopes.

Please contact us for the unit's datasheet!  
