Tektronix TCA-BNC, TCA and BNC compatible Adapter

€100.00

VAT 0%

Quantity:
Add To Cart

VAT 0%

VAT 0%

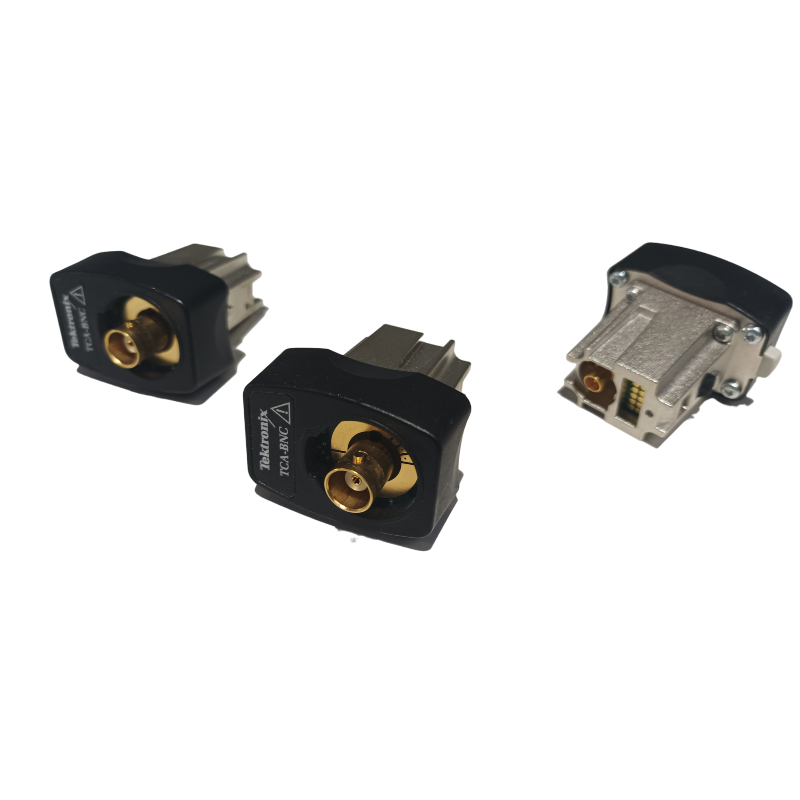

Tektronix TCA-BNC, TCA and BNC compatible Adapter

Unit is tested and in good working and cosmetic condition. Please see pictures!
Reference pictures only, please ask for units specific pictures!
Six (6) pcs available

Condition: Tested good

Need calibration for the unit? Please contact us and we'll send you a affordable calibration quote!

General description (Retrieved 10/2024, Tektronix)
Note:  Unit specific features depend on installed options. Please see unit pictures for options!

Key performance specifications

TCA-BNC – TekConnect-to-TekProbe™ BNC 50 Ω

  • DC to ≥4 GHz (instrument dependent)

  • 50 Ω input (only)

  • For control of TekProbe BNC (50 Ω) probes

Applications

  • Signal integrity, jitter, and timing analysis

  • Verification, characterization, and debug of sophisticated designs

  • High-speed digital devices and circuits

  • Semiconductor devices

  • Mobile communications

  • Investigation of transient phenomena

  • Spectral analysis

  • Video design and development

  • HDTV and streaming digital video

TekConnect interface delivers superior signal fidelity, unparalleled versatility, and ease of use

The TekConnect interface ensures superior signal fidelity with useful bandpass up to 33 GHz, while offering unparalleled versatility with the world’s widest array of accessory signal acquisition solutions for high-performance, real-time oscilloscopes. This interface delivers a robust oscilloscope interface with multi-GHz analog bandwidths. The TekConnect interface preserves a low Voltage Standing Wave Ratio (VSWR) 50 Ω environment as well as a reliable electrical connection. A convenient, one-button release and locking mechanism provides quick, easy installation and removal of probes, amplifiers, and adapters.

TCA-BNC Adapter (50 Ω only)

A direct 50 Ω input with TekProbe BNC 50 Ω capability, this adapter may be used as a direct 50 Ω BNC input or with Tektronix high-speed active and differential probes requiring the TekProbe BNC 50 Ω interface.

The TCA-BNC Adapter is a standard accessory with MSO/DPO 70000C/DX series oscilloscopes.

Please contact us for the unit's datasheet!

Terms & Conditions    

The sale includes equipment ONLY.
No other parts or accessories are included unless otherwise mentioned in the sales listing.

Goods are sold “as is, where is” basis, EXW Raisio, Finland (Incoterms 2020), if not mentioned otherwise.



 Payment & Pricing

Prices are net prices, VAT 0%.
Full advance payment unless separately agreed otherwise.

In case you are:

  • A private purchaser / consumer inside EU, please note that VAT (tax) will be added to the total price. Tax rate (%) is determined by the destination country, same as given in the delivery address.

  • A business buyer inside EU (except Finnish companies), please provide us your valid VAT ID and the price stays the same (no VAT added)

  • Outside EU VAT is not applied

  • Finnish companies & private consumers tax (VAT 24%) will be added to the price

Shipping & Handling

Delivery terms: Ex Works Raisio, Finland (Incoterms 2020)
Buyer is responsible for taxes, duties and other possible import charges.

International shipping service
Parcels: Fedex and DHL
Pallets: TNT and DHL 

All items are packaged with care to ensure full protection during shipping.

*All courier shipments are insured based on the unit’s value and not weight*

Most items are shipped within 2 business days of cleared payment.
Orders placed after 10 a.m. UTC+2  on Friday will ship the following Monday.



Warranty & Returns

A 5 Star Positive Rating is important to us!

Contact us within 14 days after receiving the purchased unit to request a refund if you notice any failure (If the item includes warranty). Please explain the failure in details with pictures included and pack the unit to the same box it was delivered to you. We will order a return ticket for the failing unit. We will issue the full refund of the unit price after receiving the unit back to us. Please note that as a buyer you are responsible for the return shipping & handling charges. 

If the product is damaged due to the Buyer's mis-handling or return shipping process, we will not refund, and we will notify eBay for return policy abuse. 

AS-IS items are sold without warranty 
Buyer pays shipping charges for returned items. 



Contact Us

Contact us if you have any questions regarding items or shipping.
Please visit our, EQT-Solutions’ web page to find additional assets. 

Business hours and details: We will reply your message as quickly as we can.
However, please refer to our business hours in Finland: 8:30 - 16:00.
