Tektronix TLA 720 Logic Analyzer (Modules: TLA 7Q4 x 2, TLA7NA4 x 2 & TLA 7E1)

€4,900.00

VAT 0%

Add To Cart

VAT 0%

VAT 0%

Tektronix TLA 720 Logic Analyzer + Accessories

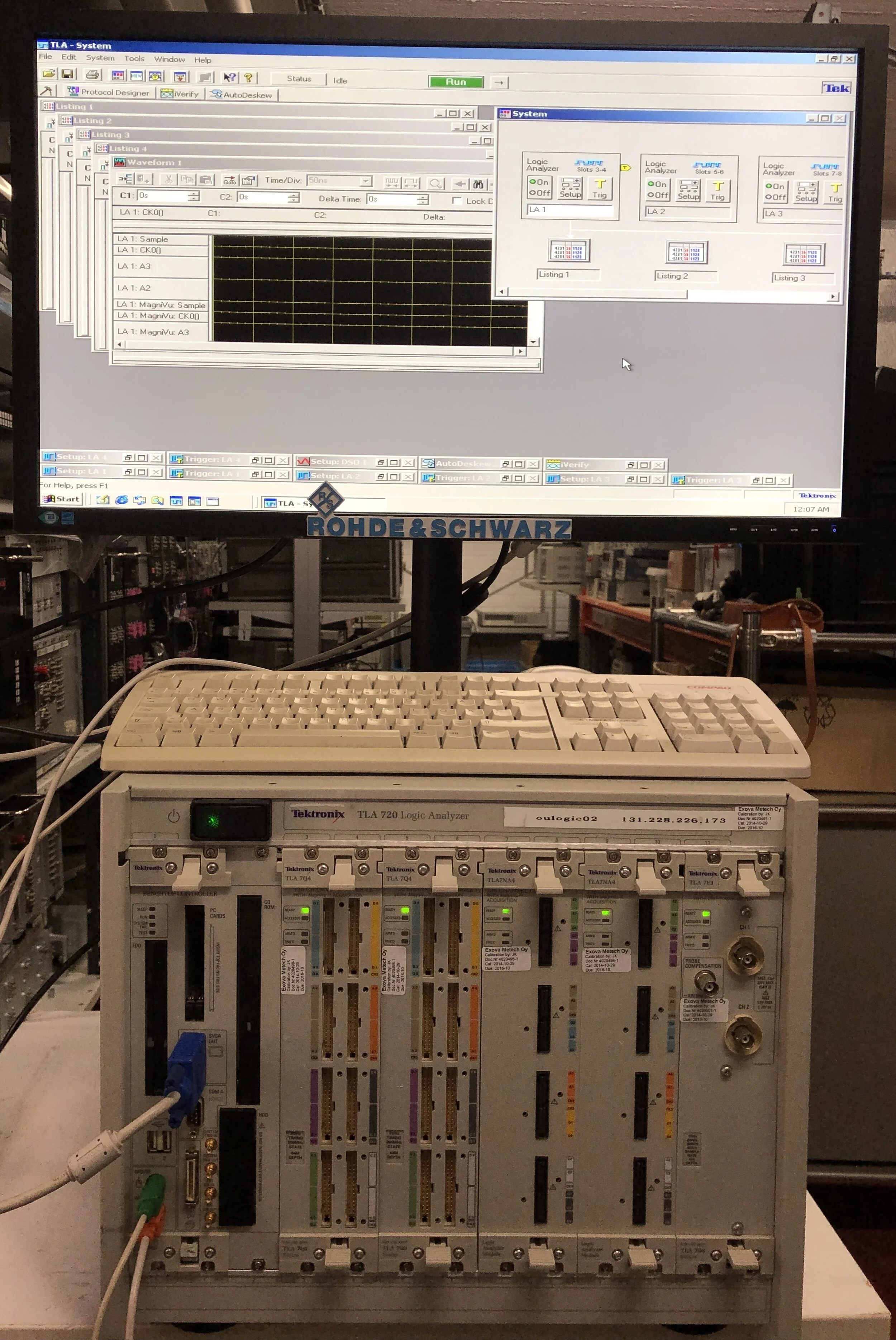

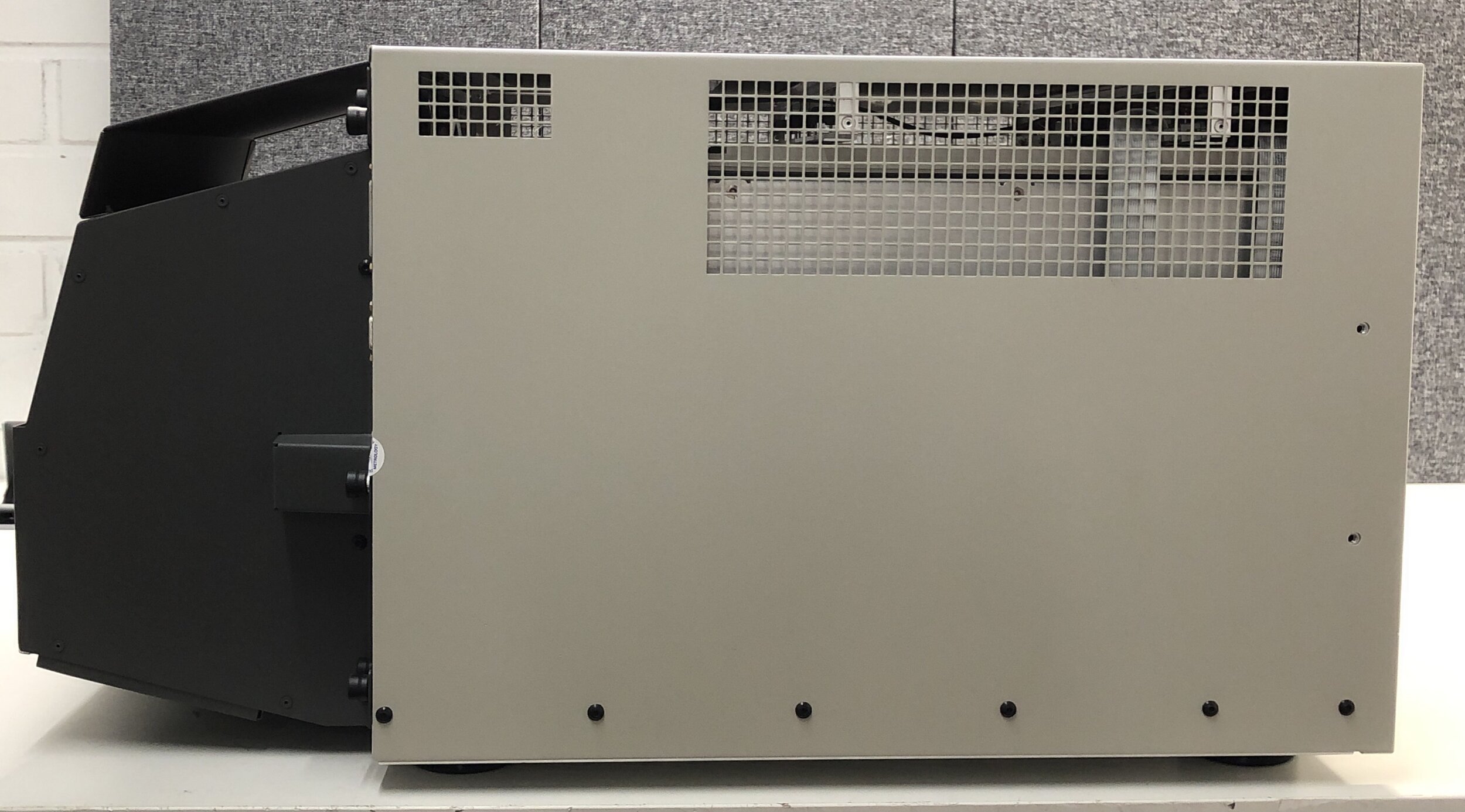

Unit is tested and in good both working and cosmetic condition. Please see pictures!

The unit has passed all tests.

Includes the following modules:

  • TLA 7Q4 x 2

  • TLA7NA4 x 2

  • TLA 7E1

Please note that we have several other modules for sale, please contact us!

Generic description (Took from manufacturer’s webpage)

Features only dependent on installed options. Please see unit pictures for options!

  • The TLA family of logic analyzers consists of the TLA700 Series.

  • The TLA700 Series offers the highest performance for today’s demanding applications and consists of portable and benchtop modular mainframes with expansion mainframe capability.

  • Instrument modules include logic analyzer, pattern generator and digitizing oscilloscope.

  • A full line of complementary support products for popular processors and buses is available for the entire TLA family.

Features

  • Holds 10 single-wide or 5 double-wide modules

  • MagniVu™ Acquisition Technology Provides 500 ps Timing Resolution on All Channels All the Time Through a Single Probe

  • Up to 200 MHz State Acquisition with 400 MHz Data Rate Supports Advanced Processors and Buses

  • Simultaneous State and High Speed Timing Analysis Through the Same Probes Pinpoints Elusive Integration Faults

  • 64 Channel Pattern Generator with up to 268 MHz and up to 2 MB Memory Depth Provides Digital Stimulus for Functional Verification, Debugging and Stress Testing

  • Four Channel Digitizing Oscilloscope with up to 1 GHz, 5 GS/s Provides High-fidelity Signal Quality Measurements of Digital Signals

  • Expansion Mainframe Supports up to 16 Modules with up to 2,176 LA channels, 1,024 Pattern Generator Channels or 64 Digitizing Oscilloscope channels for Large, Multiple Processor and Bus Applications

  • Microsoft® Windows®-based PC Platform Provides Familiar User Interface With Network Connectivity

  • Modular Mainframes Provide Flexibility and Expandability

  • Utilize Logic Analyzer or Pattern Generator Modules

  • All Measurement Modules are Fully Interchangeable Between Portable and Benchtop Mainframes

  • Integrated View (iView™) Capability Provides up to 6 GHz, 20 GS/s, and 32 Mb Analog Acquisition with a Stand-alone Tektronix TDS Digital Storage Oscilloscope

  • View Data in Waveform, Listing, Source Code, Histogram (Performance Analysis) Displays to Perform Cross-domain Analysis

  • Remote Control Using Microsoft® COM/DCOM Technology Supports Advanced Data Analysis

  • Broad Processor and Bus Support

  • TLAVu and PatGenVu Off-line Analysis Capability for Viewing Data and Creating Setups on a Separate PC

  • Voltage range/frequency: 90-250 VAC @ 45-66 Hz, 100-132 VAC @ 360-440 Hz.

  • Input current: 16.5 A maximum at 90 VAC (70 A surge).

  • Power consumption: 1450 W maximum

Applications

  • Hardware Debug and Verification

  • Processor/Bus Debug and Verification

  • Embedded Software Integration,

  • Debug and Verification

  • Embedded Real-time Software

  • Optimization

  • System Validation

Description (TLA7NA4)

TLA7NA4: 136 channels (4 are clock and 4 are qualifier channels)

  • The TLA7NAx Logic Analyzer Module speeds debug and verification of fast buses and complex embedded systems with an industry-leading combination of acquisition, triggering and analysis capabilities.

  • Quickly debug fast buses like DDR memory and PCI-X, using long record length to capture intermittent events over a wide time window and MagniVu high-speed timing to simultaneously capture glitches as small as 125ps.

  • The TLA7NAx module’s advanced triggering capabilities allow you to trigger on microprocessor operation failures, which speeds troubleshooting of embedded systems incorporating microprocessors such as the PowerQUICCIII.

  • Additional tools like source code and protocol analysis and listing view make monitoring and debugging processor operation faster and easier.
