Microwave AM81 074S 47 51R, Wideband GaAs FET High Power Amplifier #

The series AM81 covers frequencies of 728-768MHz

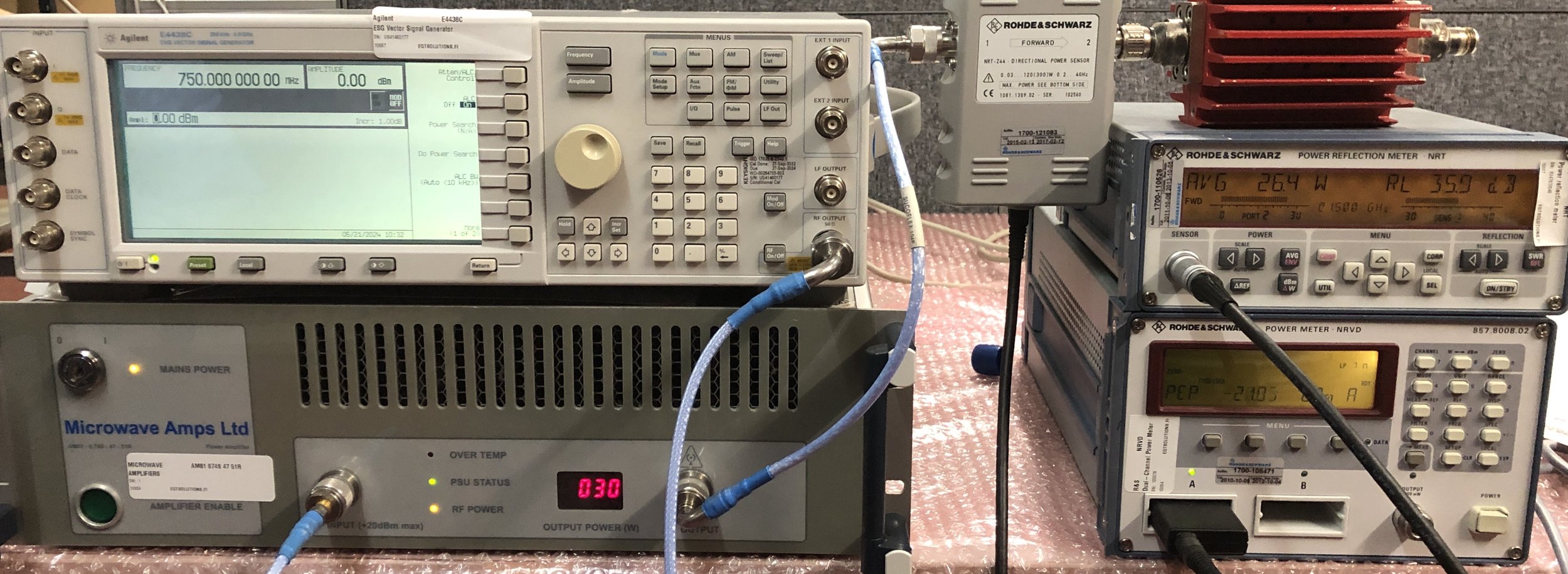

Unit is tested and in good working and cosmetic condition, please see pictures!

3 pcs available.

Condition: Tested good
Serial number: 1, 2 and 3

Specifications:

• Frequency Range 728-768MHz

• Small Signal Gain 45dB min, 47dB typ

• Gain Flatness 2dB p-p max

• Absolute Maximum RF Input +20dBm

• Output Power @ 1dB GCP +49dBm min, +49.5dBm typ

• Output Power Saturated +50.5dBm min, +51dBm typ

• Non-Harmonic Spurious Output -70dBc min

• Input Return Loss 14dB min, 17dB typ

• Output Return Loss 14dB min, 17dB typ

• RF Monitor Digital front panel meter (w)

• Power Supply Mains A2300V, 350W

• Connectors N-Type Female

The amplifier is a Class AB Solid State LDMOS design. The amplifier will support CW, modulated or pulsed input signal schemes, and will deliver the full rated power at any frequency in the range into a load of any VSWR. The amplifier is designed to provide this performance under 100% duty conditions.

Need calibration for the unit? Please contact us and we'll send you a affordable calibration quote!

Please contact us for the unit's datasheet!
