Microwave AM83-1.4-1.6-45-53R, Amplifier #

€2,100.00

VAT 0%

Quantity:
Add To Cart

VAT 0%

VAT 0%

Microwave AM83-1.4-1.6-45-53R, GaAs FET Amplifier #

The series AM83 covers frequency range of 1.4 – 1.6GHz and has a maximum output power of 200 watts.

The amplifier is a Solid State GaAs FET class AB design. The amplifier will support CW, modulated or pulsed input signal schemes, and will deliver the full rated power at any frequency in the range into a load of any VSWR. The amplifier is designed to provide this performance in 100% duty.

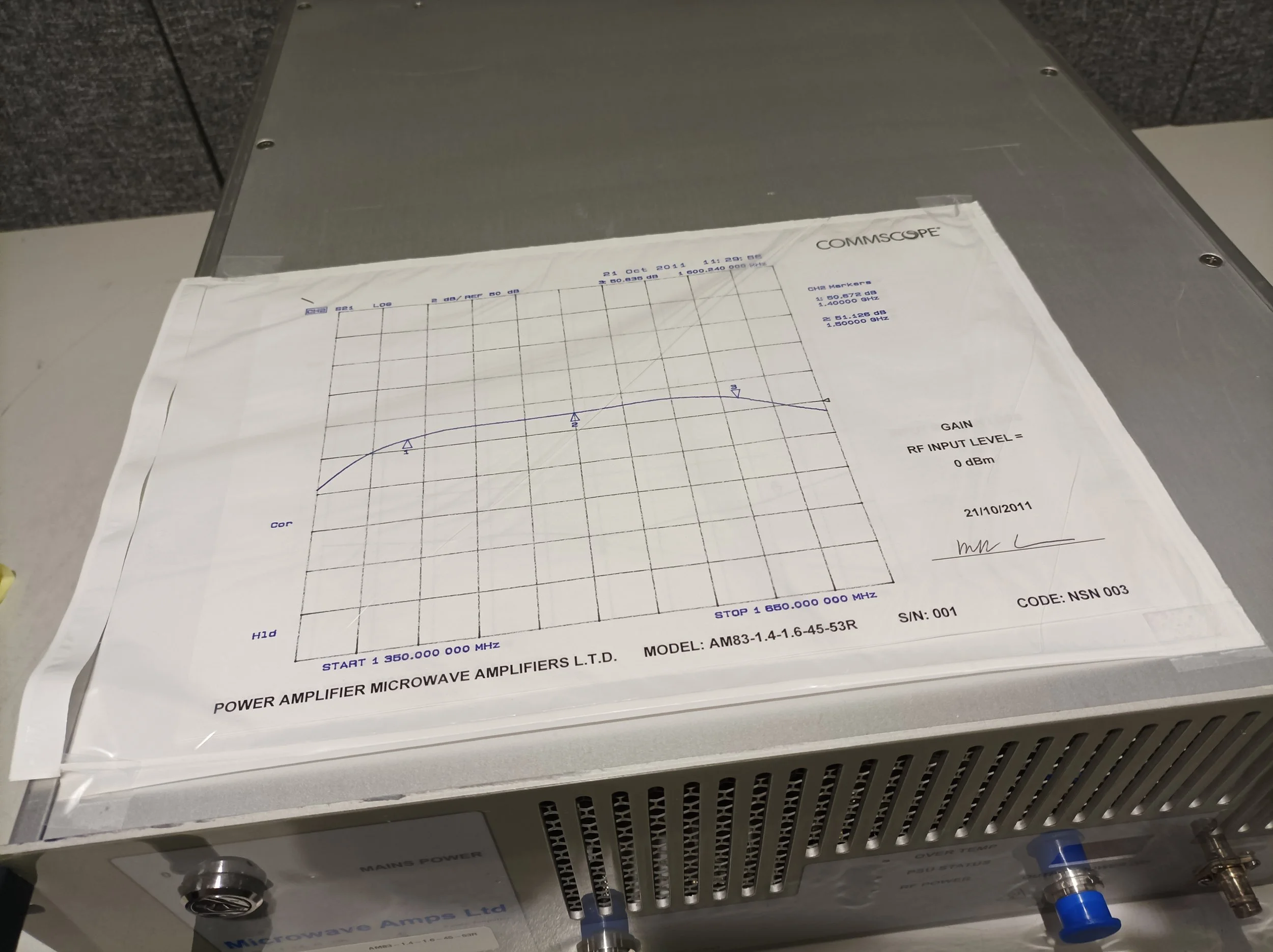

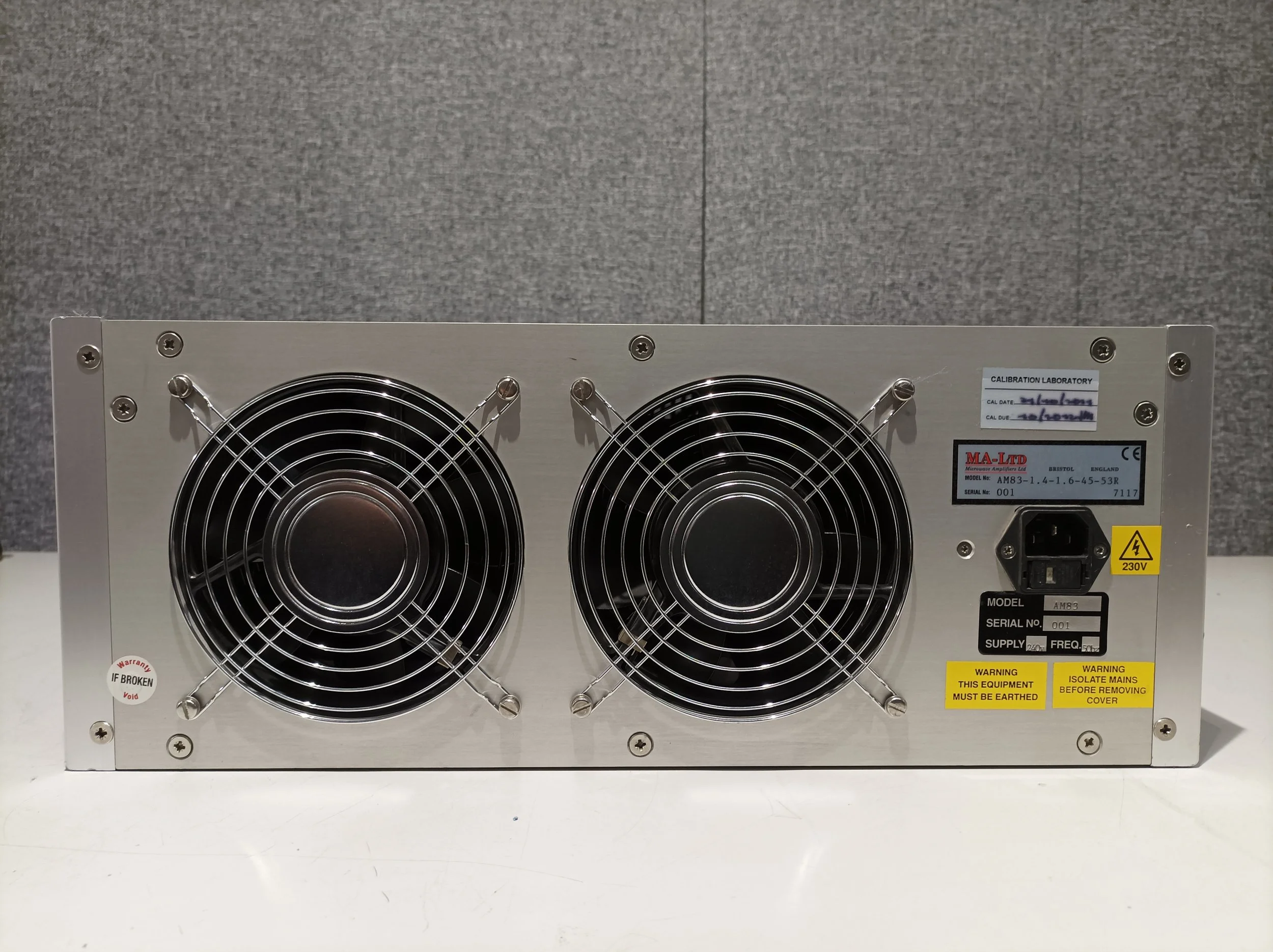

Unit is tested and in good working and cosmetic condition, please see pictures!

2 pcs available.

Condition: Tested good
Serial number: 1 and 2

Specifications:

  • Frequency Range 1.4 – 1.6GHz

  • Small Signal Gain 45dB min, 50dB typ

  • Gain Flatness 1dB p-p max

  • Absolute Maximum RF Input +20dBm

  • Output Power @ 1dB GCP +52.5dBm min, +53dBm typ

  • Output Power CW +53dBm min

  • Non-Harmonic Spurious Output -60dBc min

  • Noise Figure 4dB typ

  • Input Return Loss 14dB min, 17dB typ

  • Output Return Loss 17dB min, 19dB typ

  • RF Monitor Front Panel Meter

  • Power Supply Mains AC200-240V, 1000W *

  • Connectors N-Type Female

Main Features:

  • GaAs Fet design:Utilises the latest push-pull high power GaAs fet devices

  • Unconditional stability: Will not oscillate under any input/output load conditions

  • Reverse power protection: Integral isolators absorb all reflected power

  • Over temperature protection: Automatic over temp shut-down with auto reset & indicator

  • Power supply status monitor: Indicates status of internal AC/DC convertor

  • RF indicator: Indicates RF output > nominal 5W

  • Power Meter: LED display provides indication of forward power.

  • Main power keyswitch: With indicator. Initialises unit & activates cooling system

  • Amplifier enable PB switch: Illuminated. Activates RF power module. (must be ON if TTL used)

Need calibration for the unit? Please contact us and we'll send you a affordable calibration quote!

Please contact us for the unit's datasheet!
