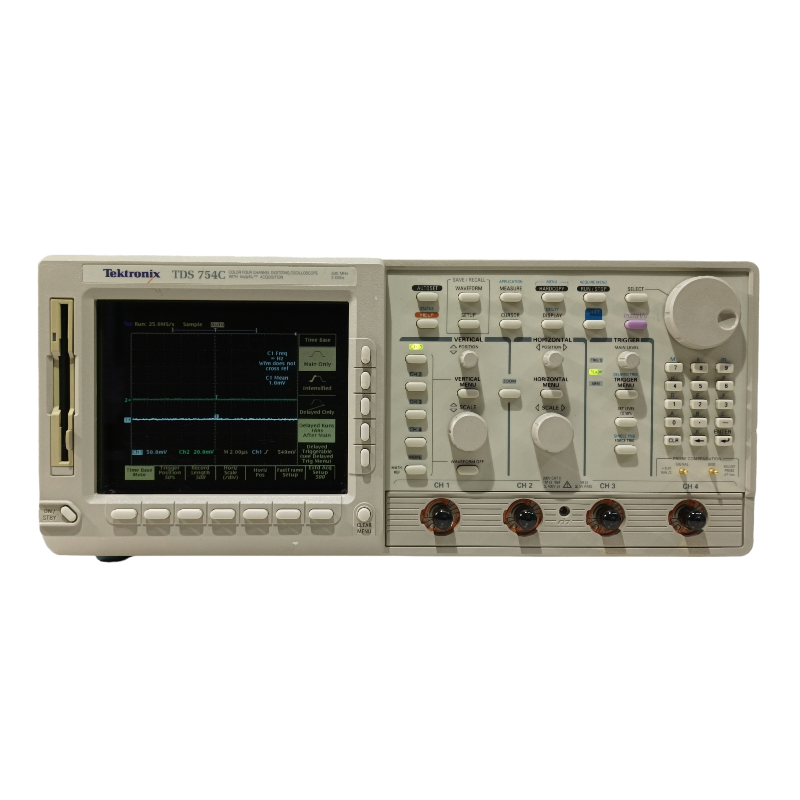

Tektronix TDS754C, OSCILLOSCOPE DIGITAL #

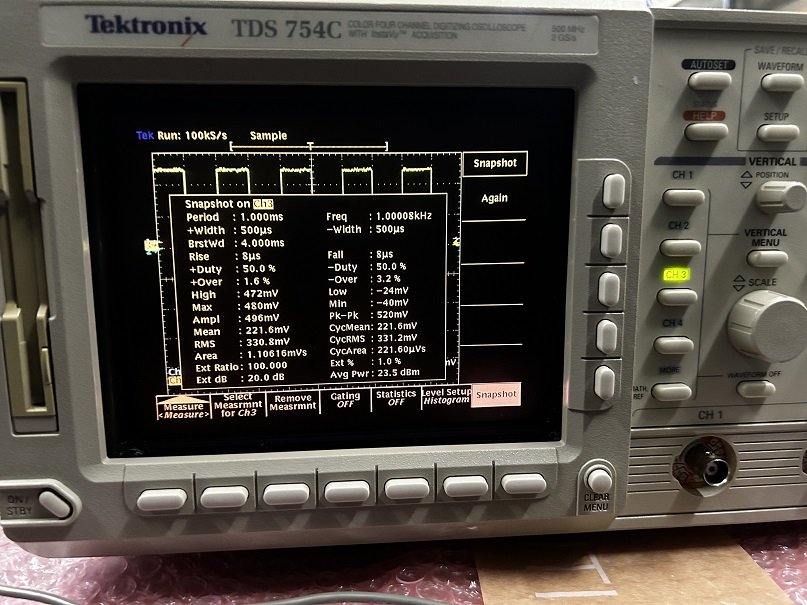

Sold as is. Unit is tested and in good working and cosmetic condition, except for screen buttons which are working, but requires forced pushing. Please see pictures!

Condition: Sold as is, screen buttons working, but requires forced pushing
Serial number: B011788

Options: 13, 1F, 1M, 2F

Calibrated: 08/2016

Need calibration for the unit? Please contact us and we'll send you a affordable calibration quote!

General Description (Retrieved 09/2024, Tektronix)

Features & Benefits

The Tektronix TDS Oscilloscope is a superb tool for acquiring, displaying, and measuring waveforms. Its performance addresses the needs of both benchtop lab and portable applications with the following features:

• A maximum sample rate of up to 5 GS/s per channel, depending on the model

• A analog bandwidth of 1 GHz or 500 MHz, depending on the model

• Records lengths up to 50 K standard and 500 K with Option 1M and up to 8 M with Option 2M, depending on the model

• Four channel or 2 + 2 channel operation, depending on model. (Two plus Two channel operation allows two of four channels to be displayed simultaneously.) All channels have 8-bit resolution.

• Trigger modes include edge, logic, and pulse. Video trigger modes, available with option 05 only, include NTSC, SECAM, PAL, HDTV, and FlexFor- matT. Available with option 2C only, 28 Communications trigger modes.

• Dual Window Zoom, which shows a waveform magnified and unmagnified on the same display

• Sample, envelope, average, high res, peak-detect and InstaVuT acquisition mode, which updates the display at rates rivaling the fastest analog oscilloscopes.

Please contact us for the unit’s datasheet!
